WPDS shaft cast iron case gearboxes

WPDS

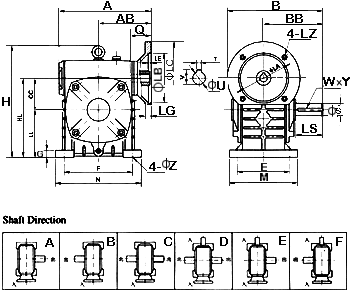

Size	Inpower KW	Ratio	A	AB	B	BB	CC	E	F	G	H	HL	LL	M	N	Z
50	0.18	1/5 1/10 1/15 1/20 1/25 1/30 1/40 1/50 1/60	155	84	165	95	50	95	110	15	180	130	80	120	140	11
60	0.37		170	92	190	110	60	105	120	20	205	150	90	130	150	11
70	0.37		206	110	210	130	70	115	150	20	235	175	105	150	190	15
	0.75				230
80	0.75		232	128	240	140	80	135	180	20	265	200	120	170	220	15
	1.5
100	1.5		266	145	263	163	100	155	220	25	363	250	150	190	260	15
	2.2		270	149	288
120	2.2		340	182	310	185	120	180	260	30	424	300	180	230	320	18
	3.0
135	3.0		375	200	335	210	135	200	290	30	481	350	215	250	350	18
	4.0
155	5.5		442	236	402	252	155	220	320	32	536	390	235	280	390	20
175	7.5		465	240	412	262	175	250	350	40	550	435	260	310	430	20

Size	Flange						Output Hole			Output HShaft			Weight Kg
Size	LA	LB	LC	LE	LG	LZ	Q	U	T×V	LS	S	W×Y	Weight Kg
50	115	95	140	5	10	M8	25	11	4×12.8	40	17	5×3	7
60	130	110	160	5	12	M8	35	14	5×16.3	50	22	7×4	11
70	130	110	160	5	12	M8	35	14	5×16.3	60	28	7×4	14
70	165	130	200	5	15	M10	45	19	6×21.8	60	28	7×4	14
80	165	130	200	5	15	M10	45	19	6×21.8	65	32	10×4.5	23
80	165	130	200	5	15	M10	55	24	8×27.3	65	32	10×4.5	23
100	165	130	200	5	12	M10	52	24	8×27.3	75	38	10×4.5	38
100	215	180	250	5	15	M12	62	28	8×31.3	75	38	10×4.5	38
120	215	180	250	5	18	M12	65	28	8×31.3	85	45	12×4.5	65
135	215	180	250	5	18	M12	65	28	8×31.3	95	55	15×5	84
155	265	230	300	5	20	M12	85	38	10×41.3	110	60	15×5	120
175	265	230	300	6	18	M12	85	38	10×41.3	110	65	18×6	155

We can produce the WPDS cast iron case gearboxes according your requirements. Please contact us for the price.
