Hollow pin chains

A stainless steel, chains, chain, china, roller chains, Conveyor Chains, Silent chains, leaf, hollow pin, flap top, short gauge

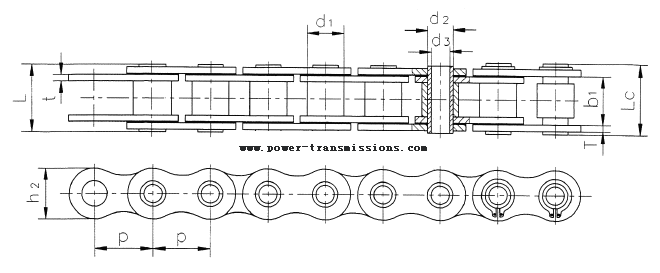

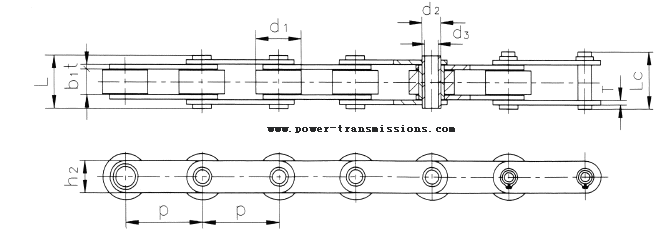

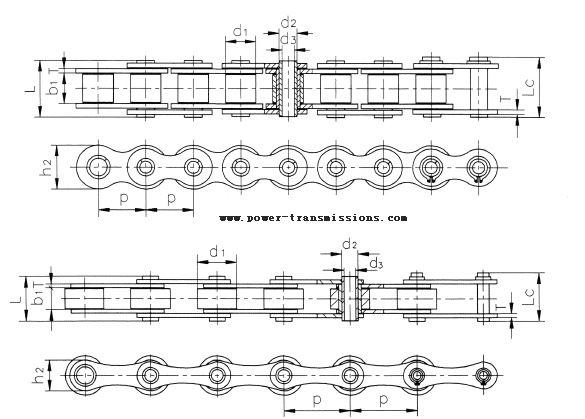

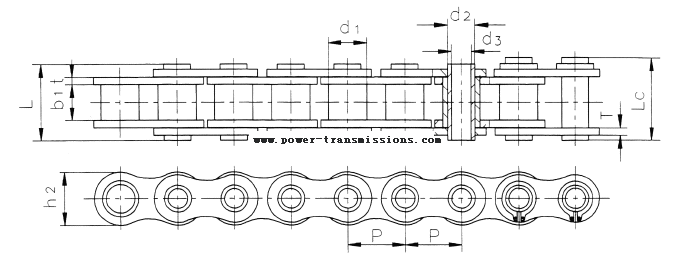

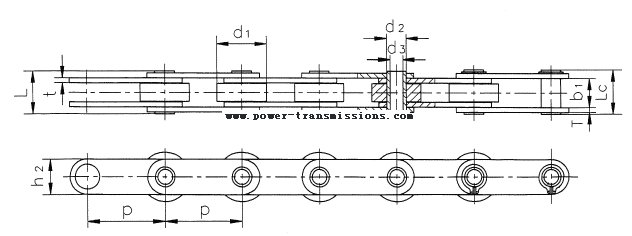

South Chain No. Pitch Roller diameter Width between inner plates Pin diameter Pin length Inner plate depth plate thickness Ultimate tensile strength Average tensile strength Weight per meter Type form
P d1(max) b1(min) d2(max) d3(min) L(max) Lc(max) h2(max) t/T(max) Q(min) Q0 q 　
mm mm mm mm mm mm mm mm mm kN kN kg/m 　
08BHPFSS 12.700 8.50 7.75 6.55 4.50 16.4 17.6 11.80 1.6/1.3 6.66 7.26 0.56 A
40HPSS 12.700 7.95 7.85 5.63 4.00 16.5 17.6 12.00 1.50 6.60 7.32 0.54 A
50HPSS 15.875 10.16 9.40 7.03 5.13 20.7 21.9 15.09 2.03 12.00 13.56 0.91 A
60HPSS 19.050 11.91 12.70 8.31 6.00 25.8 26.8 18.00 2.42 14.40 16.14 1.29 A
60HPF1SS 19.050 11.91 12.70 8.31 5.01 25.5 26.8 18.00 2.42 16.80 18.54 1.37 A
80HPSS 25.400 15.88 15.75 11.40 8.05 32.5 33.8 24.00 3.25 30.00 34.98 2.26 A
C2040HPSS 25.400 7.95 7.85 5.63 4.00 16.5 17.6 12.00 1.50 6.60 7.56 .046 B
C2050HPSS 31.750 10.16 9.40 7.22 5.12 20.5 21.8 15.00 2.03 12.24 13.68 0.76 B
C2060HPSS 38.100 11.91 12.70 8.31 6.00 25.8 26.8 17.00 2.42 14.40 16.26 1.02 B
C2080HPSS 50.800 15.88 15.75 11.40 8.05 32.5 33.8 24.00 3.25 30.00 33.12 1.81 B
HP50F1SS 50.000 26.00 14.50 20.00 14.70 35.3 36.2 40.00 3.10 18.00 20.16 3.98 B
B
stainless steel, chains, chain, china, roller chains, Conveyor Chains, Silent chains, leaf, hollow pin, flap top, short gauge

　

South Chain No. Pitch Roller diameter Width between inner plates Pin diameter Pin length Inner plate depth plate thickness Ultimate tensile strength Average tensile strength Weight per meter Type form
P d1(max) b1(min) d2(max) d3(min) L(max) Lc(max) h2(max) t/T(max) Q(min) Q0 q 　
mm mm mm mm mm mm mm mm mm kN kN kg/m 　
10BHBSS 15.875 10.16 9.65 5.94 4.04 19.3 20.6 14.7 1.70 10.20 12.48 0.86 A
12BHPSS 19.050 12.07 11.68 6.50 4.00 21.6 22.8 15.9 1.85 14.16 15.54 1.09 A
60HBSS 19.050 11.91 12.70 7.00 5.01 25.5 26.6 18.0 2.42 12.00 13.44 1.35 A
HP35SS 35.000 20.00 16.00 13.35 10.20 30.4 31.6 26.3 2.50 14.11 15.84 2.02 A
HP50F2SS 50.000 31.00 15.00 13.20 10.20 36.5 38.0 25.0 4.00 24.00 25.92 3.40 B
HB38.1SS 38.100 20.00 8.00 8.00 5.30 19.6 20.7 17.3 2.03 15.00 17.28 0.98 B
HB50.8SS 50.800 30.00 10.50 11.40 8.20 27.4 28.6 26.0 3.10 30.00 32.16 2.56 B
HB63SS 63.000 30.00 10.00 11.40 8.10 26.7 28.1 26.5 3.10 30.00 32.16 2.07 B
HB100SS 100.000 30.00 10.50 11.40 8.20 27.4 28.6 26.0 3.10 30.00 32.16 1.56 B



C stainless steel, chains, chain, china, roller chains, Conveyor Chains, Silent chains, leaf, hollow pin, flap top, short gauge
　
South Chain No. Pitch Roller diameter Width between inner plates Pin diameter Pin length Inner plate depth Plate thickness Ultimate tensile strength Average tensile strength Weight per meter
P d1(max) b1(min) d2(max) d3(min) L(max) Lc(max) h2(max) t/T(max) Q(min) Q0 q
mm mm mm mm mm mm mm mm mm kN kN kg/m
C2042HPSS 25.40 15.88 7.85 5.63 4.00 16.5 17.6 12.0 1.50 6.60 7.56 0.78
C2052HPSS 31.75 19.05 9.53 7.22 5.12 20.5 21.8 15.0 2.03 12.24 13.68 1.25
C2062HPSS 38.10 22.23 12.70 8.31 6.00 25.8 26.8 17.0 2.42 14.40 16.26 1.72
C2082HPSS 50.80 28.58 15.75 11.40 8.05 32.4 33.8 24.0 3.25 30.00 33.12 2.82
C2052HPF1SS 31.75 19.05 9.40 7.03 5.12 20.0 21.5 15.3 1.85 9.00 10.38 1.21
C2042H-HPSS 25.40 15.88 7.85 5.63 4.00 18.8 19.9 12.0 2.03 6.60 7.92 0.95
C2052H-HPSS 31.75 19.05 9.53 7.22 5.12 22.1 23.4 15.0 2.42 12.24 14.10 1.44
C2062H-HPSS 38.10 22.23 12.70 8.31 6.00 29.2 30.2 17.0 3.25 14.40 16.56 1.99
C2082H-HPSS 50.80 28.58 15.75 11.40 8.05 36.2 37.6 24.0 4.00 30.00 33.90 3.26
HP40SS 40.00 22.00 8.75 9.00 6.00 23.0 24.2 18.0 2.50 12.00 12.60 1.49
HP50SS 50.00 31.00 14.50 13.20 10.40 31.1 32.5 25.0 3.10 18.00 40.86 3.29
HP50F4SS 50.00 31.00 15.00 13.20 10.20 36.5 38.0 28.5 4.00 24.00 26.88 3.73
63HPF1SS 63.00 40.00 15.00 16.00 12.10 35.0 36.2 26.0 4.00 30.00 34.02 4.20
DH4202HPSS 50.80 31.80 15.00 14.00 10.10 36.6 39.0 26.0 3.80 25.20 33.96 3.75
DH4203HPSS 76.20 31.80 15.00 14.00 10.10 36.3 39.0 26.0 3.80 25.20 28.26 3.01
DH42035HPSS 88.90 31.80 15.00 14.00 10.10 36.3 39.0 26.0 3.80 25.20 33.66 2.79
DH4204HPSS 101.60 31.80 15.00 14.00 10.10 36.3 39.0 26.0 3.80 25.20 33.96 2.63
DH8403HPSS 76.20 47.60 19.00 19.05 13.60 43.8 46.3 39.0 5.1/3.8 50.58 78.18 6.81
DH8404HPSS 101.60 47.60 19.00 19.05 13.60 43.8 46.3 39.0 5.1/3.8 50.58 78.18 5.78
DH8406HPSS 152.40 47.60 19.00 19.05 13.60 43.8 46.3 39.0 5.1/3.8 50.40 78.18 5.18



D
stainless steel, chains, chain, china, roller chains, Conveyor Chains, Silent chains, leaf, hollow pin, flap top, short gauge
stainless steel, chains, chain, china, roller chains, Conveyor Chains, Silent chains, leaf, hollow pin, flap top, short gauge

South Chain No. Pitch Roller diameter Width between inner plates Pin diameter Pin length Inner plate depth Plate thickness Ultimate tensile strength Average tensile strength Weight per meter Type form
P d1(max) b1(min) d2(max) d3(min) L(max) Lc(max) h2(max) t/T(max) Q(min) Q0 q 　
mm mm mm mm mm mm mm mm mm kN kN kg/m 　
08BHPF2SS 12.700 8.51 13.20 6.65 5.20 18.0 19.2 11.8 1.6/1.3 6.00 6.83 0.50 A
10BHPF1SS 15.875 10.16 13.41 7.03 5.00 19.2 20.2 14.0 1.85 10.20 12.36 0.83 A
12BHPF1SS 19.050 12.07 16.00 8.03 5.40 22.7 23.9 15.8 1.85 15.00 17.28 1.09 A
16BHPF1SS 25.400 15.88 25.58 11.50 8.10 36.0 37.6 21.0 4.15/3.1 27.00 31.32 2.21 A
60HPF2SS 19.050 11.91 11.23 5.63 4.05 16.5 17.6 10.4 1.50 6.00 6.48 0.62 A
63HPSS 63.000 40.00 23.50 16.00 8.10 35.3 38.3 28.6 4.00 39.00 10.50 4.14 B
63HPF2SS 63.000 40.00 25.80 14.00 4.05 39.1 41.1 20.0 5.00 30.00 39.42 4.17 B
63HPF4SS 63.000 40.00 23.50 16.00 12.00 34.7 37.7 28.6 4.00 26.40 34.32 4.13 B
63HPF6SS 63.000 40.00 28.94 16.00 8.20 41.8 43.4 28.6 4.00 26.40 34.32 5.18 B
C2122HPF1SS 76.200 47.60 29.00 17.81 12.30 43.3 44.7 38.1 4.80 32.00 35.52 7.05 B
