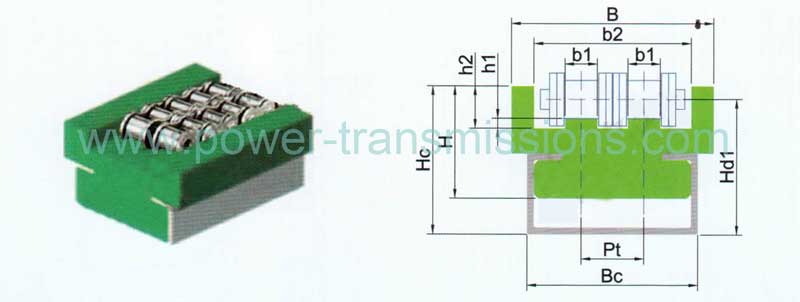

CE2 guides with metallic profile for double roller chains
Type Chain Ref. ISO EN or ASTM C profile Bc Hc B H Hd1
CE2-06B2 06B-2 3/8"x7/32" C5 28 17 34.2 13 20.6
CE2-08B2 08B-2 1/2" x 5/16" C9 38 25 42.0 21 28.9
CE2-10B2 10B-2 5/8" x 3/8" C9 38 27 49.5 23 31.9
CE2-12B2 12B-2 3/4" x 7/16" C12 60 29 55.8 24 35.2
CE2-16B2 16B-2 1" x 17 mm C12 60 31 87.2 26 39.3
CE2-20B2 20B-2 1 1/4" x 3/4" C12 60 34 95.1 29 43.6
CE2-24B2 24B-2 1 1/2" x 1" C12 60 35 118.8 30 48.0
CE2-06C2 06C-2 35 C5 28 18 31.9 14 20.3
CE2-08A2 08A-2 40,208A,2040 C9 38 25 41.2 21 29.0
CE2-10A2 10A-2 50,210A,2050 C9 38 27 52.0 23 32.1
CE2-12A2 12A-2 60,212A,2060 C12 60 30 63.4 25 36.0
CE2-16A2 16A-2 80,216A,2080 C12 60 33 77.5 28 41.0
CE2-20A2 20A-2 100,220A,2100 C12 60 36 89.8 31 45.8
CE2-24A2 24A-2 120,224A,2120 C12 60 38 108.8 33 49.4
